Catenary

Prototype goes electric ... and the locos on your layout? Now, it is easy, to build your own catenary. Use our rtr-poles or use parts from our program, to construct your special catenary-system. For full details look at german catenary-page.

Please excuse us, but we are so busy that we can no longer update all the English language pages. Please visit the German pages and use a translation machine if necessary. Thank you for your understanding.

single poles -rtr-
poles and traverses -kit-



accessories for catenary -kit-
single poles -rtr- as used on RhB, FO, MGB, etc.
Now, here is the best choice for building your own RhB-prototypical catenary. The rtr-poles are build from Sommerfeldt, with N-Track parts added for best appearance.
Nm-701.1 vergrößerte Ansicht

single pole for RhB-catenary (and other companies).

H-profil-pole, with straight bracket, without power-line.
(additional information - see information)

zur Katalogseite
Nm-701.2 vergrößerte Ansicht

single pole for RhB-catenary (and other companies).

H-profil-pole, with straight bracket, with 1 power-line.
(additional information - see information)

zur Katalogseite
Nm-701.3 vergrößerte Ansicht

single pole for RhB-catenary (and other companies).

H-profil-pole, with straight bracket, with 2 power-lines.
(additional information - see information)

zur Katalogseite
Nm-702.1 vergrößerte Ansicht

single pole for RhB-catenary (and other companies).

H-profil-pole, with rounded bracket, without power-line.
(additional information - see information)

zur Katalogseite
Nm-702.2 vergrößerte Ansicht

single pole for RhB-catenary (and other companies).

H-profil-pole, with rounded bracket, with 1 power-line.
(additional information - see information)
zur Katalogseite
Nm-702.3 vergrößerte Ansicht

single pole for RhB-catenary (and other companies).

H-profil-pole, with rounded bracket, with 2 power-lines.
(additional information - see information)
zur Katalogseite
Nm-703.1 vergrößerte Ansicht

pull-off pole for RhB-catenary (and other companies).

H-profil-pole, without power-line.
(additional information - see information)
zur Katalogseite

Hint: You can use the poles for most of the prototypical situations. The catenary-wire is glued or soldered to the registration arms in zig-zag type. The carrying wire is glued or soldered on top of the arm (e.g. with the rounded ones) or inside the arm (e.g. the straight arms). It keeps the catenary-wire allways on tension. So one time you use the outside holder, the next is the inside holder, and so on. When everything works, just cut off the unneccessary parts. The filigrane parts are not recommended for real work. For detailed information, you should have a look into the excellent brochure of Sommerfeldt.Seitenanfang

poles and traverses - kits
Poles and traverses are the base for a solid catenary. You will find here the excellent parts of Sommerfeldt- and N-Track for your own constructions.
Nm-Y00030
vergrößerte Ansicht

traverse, 2 pieces, 2 tracks, 69 mm long, ready bended

zur Katalogseite
Nm-Y00031 vergrößerte Ansicht

traverse, 2 pieces, 3 tracks, 99 mm long, ready bended

zur Katalogseite
Nm-Y00032 vergrößerte Ansicht

traverse, 2 pieces, 4 tracks, 152 mm long, not bended

zur Katalogseite
Nm-Y00033 sold out vergrößerte Ansicht

traverse, 2 pieces, 6 tracks, 196 mm long, not bended
This item is no longer available!

zur Katalogseite
Nm-Y00034 sold out vergrößerte Ansicht

traverse, 2 pieces, 250 mm long for your individual constructions, not bended
This item is no longer available!

zur Katalogseite

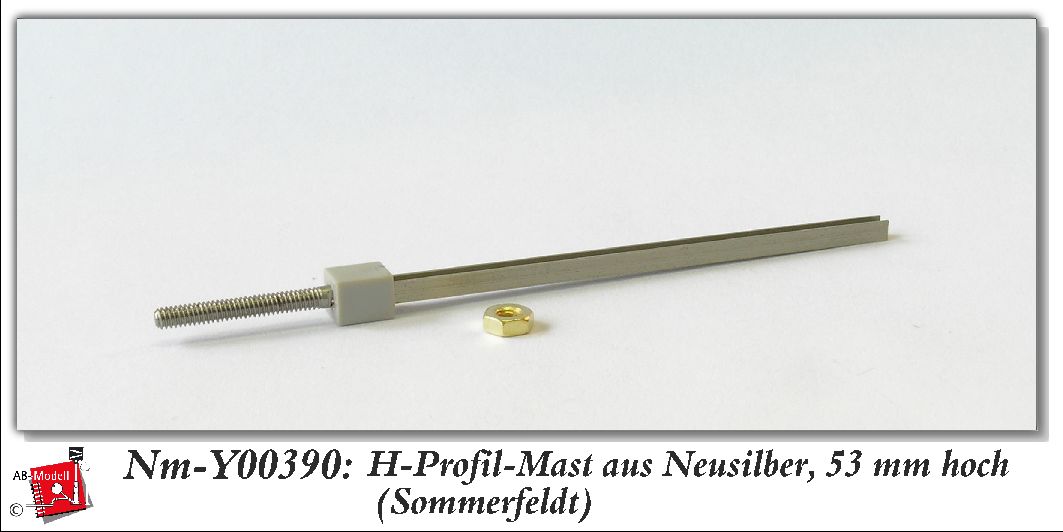

Nm-Y00390 vergrößerte Ansicht

H-profil-mast from new-silver, ready to use, 53 mm high, manufacturer Sommerfeldt

zur Katalogseite

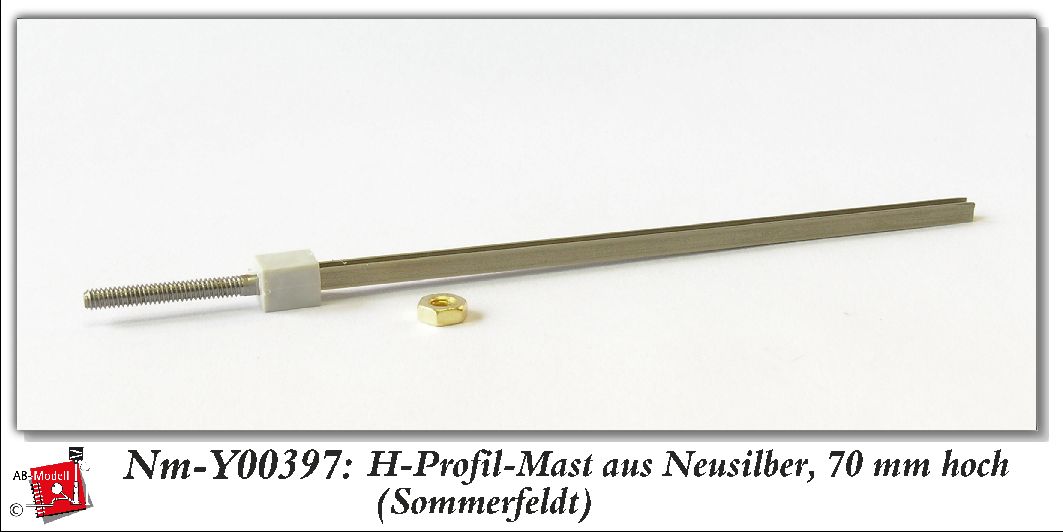

Nm-Y00397 vergrößerte Ansicht

H-profil-mast from new-silver, ready to use, 70 mm high, manufacturer Sommerfeldt

zur Katalogseite

Hint: You need poles for nearly every kind of fixture. Only rare situations are known, when the catenary is fixed at a building or another point. For more than one track, traverses are used. The long ones are not bended yet, but it is easily done, because the bendingline is etched into the part. Seitenanfang

accessories for your catenary - kits
Poles and traverses is not all, it is the base only. Use our fine accessories, to make your catenary look as prototypical as even possible. Parts from brass or new-silver. Manufacturer N-Track.
Nm-Y00010
vergrößerte Ansicht

bracket, straight, ready bended, without isolators, 2 pieces, kit

zur Katalogseite
Nm-Y00011 vergrößerte Ansicht

bracket, rounded end, ready bended, without isolators, 2 pieces, kit

zur Katalogseite
Nm-Y00017 vergrößerte Ansicht

registration arm for catenary-wire, with short distance of isolator to the pole, 10 pieces, kit

zur Katalogseite
Nm-Y00018
vergrößerte Ansicht

registration arm for catenary-wire, with wide distance of isolator to the pole, 10 pieces, kit

zur Katalogseite
Nm-Y00019 vergrößerte Ansicht

fixture at the pole (e.g. for catenary-wire, carrying-wire, cross-span-wire, fixing-point)

zur Katalogseite
Nm-Y00020 vergrößerte Ansicht

concrete-base, big block, including srew-plate, 10 pieces, kit -sold out-

zur Katalogseite
Nm-Y00021
vergrößerte Ansicht

concrete-base, small block, including srew-plate, 10 pieces, kit

zur Katalogseite
Nm-Y00025 vergrößerte Ansicht

screw-plate, e.g. in use with Sommerfeldt-masts, 10 pieces, kit

zur Katalogseite
Nm-Y00050 vergrößerte Ansicht

holder for carrying-wire, to be used on top of traverse, without isolator, 10 pieces, kit

zur Katalogseite
Nm-Y00051
vergrößerte Ansicht

holder for power-line, single-line, without isolator, 10 pieces, kit

zur Katalogseite
Nm-Y00052 vergrößerte Ansicht

holder for power-line, double-line, without isolator, 10 pieces, kit

zur Katalogseite
Nm-Y00053 vergrößerte Ansicht

holder for carrying-wire, to be used inside of traverse, without isolator, 10 pieces, kit

zur Katalogseite
Nm-Y00070
vergrößerte Ansicht

tensioning assembly, without isolator, 2 pieces, kit (please order part Nm-Y00019 too, it is needed for the prototypical look)

zur Katalogseite

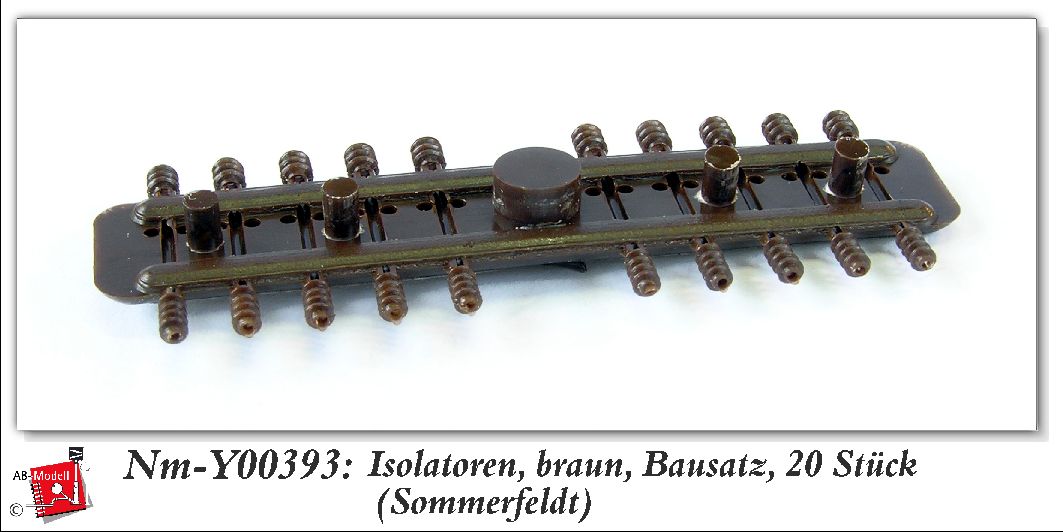

Nm-Y00393 vergrößerte Ansicht

isolators, brown, plastic moulding, 20 pieces, kit, manufacturer Sommerfeldt

zur Katalogseite
Nm-Y00501 vergrößerte Ansicht

catenary signal plates, decal-set, 248 signs, kit

zur Katalogseite

Hint: These parts will be thrown over the H-profile-masts and glued or soldered in the correct position. It is helpful, to make a scetch of all the poles you need, to have the best chance, to get a nice and prototypical catenary. Seitenanfang
